Foam Cutter(Horizontal CNC Contour Cutting Machine, Model H6S)
Usage
This horizontal foam cutting machine can cut both simple geometric patterns and large quantities of foam blocks.
Materials that can be cut
PU, PU soft foam, PUR HR foam, sticky foam, latex, rebond foam, and Basotect ®
Shapes

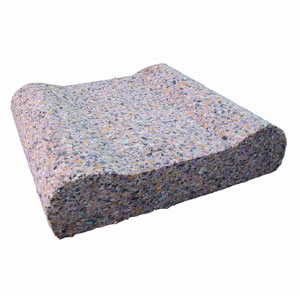

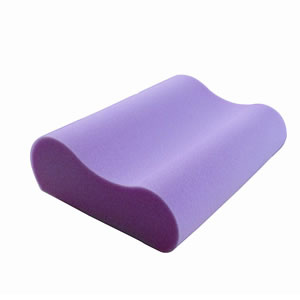

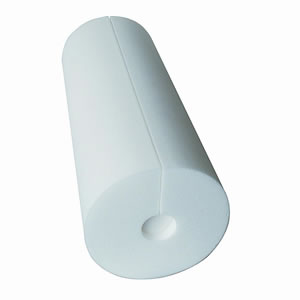

The horizontal foam cutter can cut just about any shape, from lengthened blocks and 2D or simple 3D products to wavy, curved, regular, and irregular shapes.
| Standard | Option | |
| Length of the foam block | 3000mm | 4500/5000mm |
| Height of the foam block | 1250mm | 1500mm |
| Width of the foam block | 2200mm | 2300mm |
| Work table | Conveyor belt worktable | |
| AC power | 380V 3phase 4 wire | |
| Total power | 13KW | |
| Cutting precision | ±0.5mm | |
| Cutting tool | Air pressure: 6 bar Blade stroke: 48mm 50Hz Blade size: 2420mm×3.0mm×0.6mm Oscillating speed: 3000 times/min | |
| Standard configuration | Modem (remote diagnosis and maintenance) Manual turntable Automatic programming software Computer console Absolute value control Automatic angle adjustment Hanging control panel | |
| Max cutting speed | Different cutting materials will be cut at different speed. And the max. speed is 15 meters/minute. | |

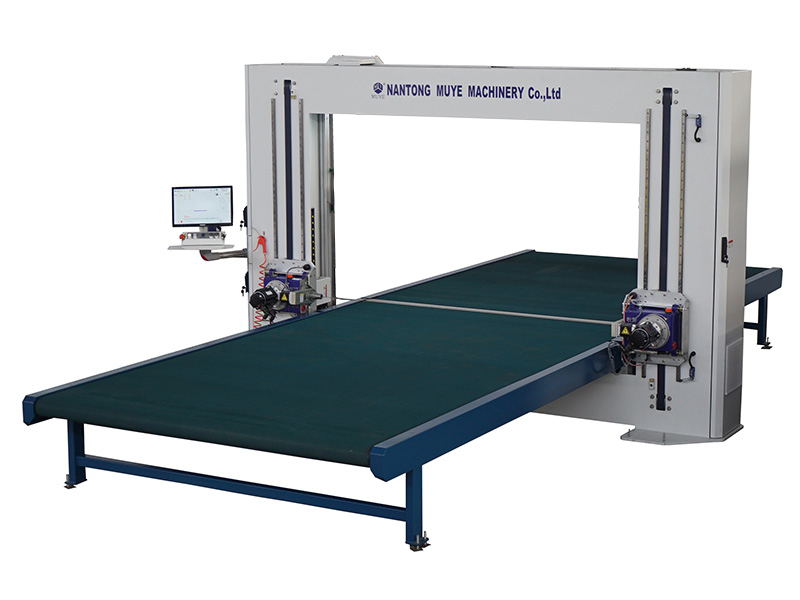

Muye’s H6S foam cutter is a horizontal CNC contour cutting machine which performs neat, simple cutting on foam commonly used by upholstery, packaging, daily uses and more. As a CNC cutter, it is best suited for cutting large amounts of sponges into blocks, and this contour cutting machine works well with ordinary vertical cutting machines. After the worktable is lengthened, it wastes less material and its working efficiency increases.
Features
1. This CNC foam cutter is suitable for the manufacture of massive products in various shapes.

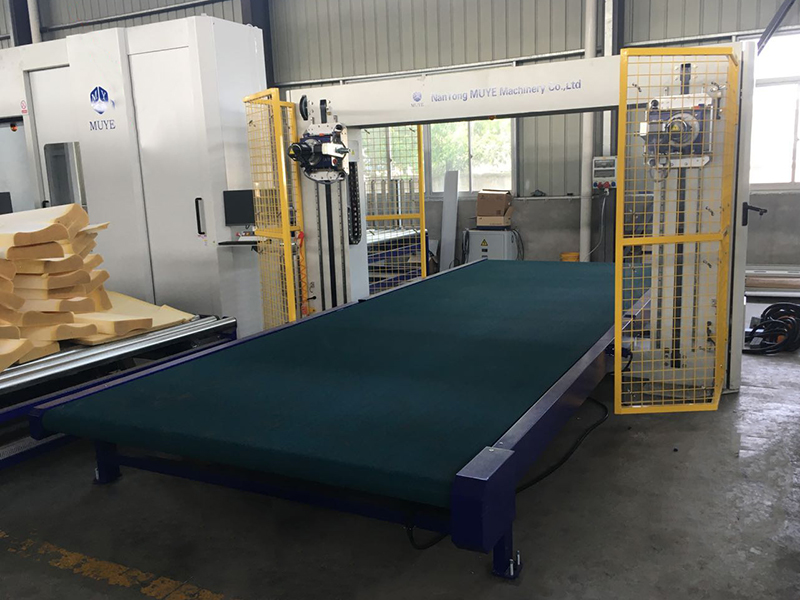

2. The working platform is conveyor-like, and is extended to facilitate loading foams while building an assembly line.
