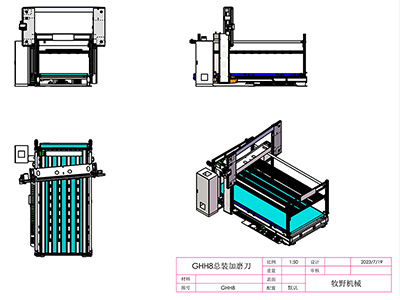

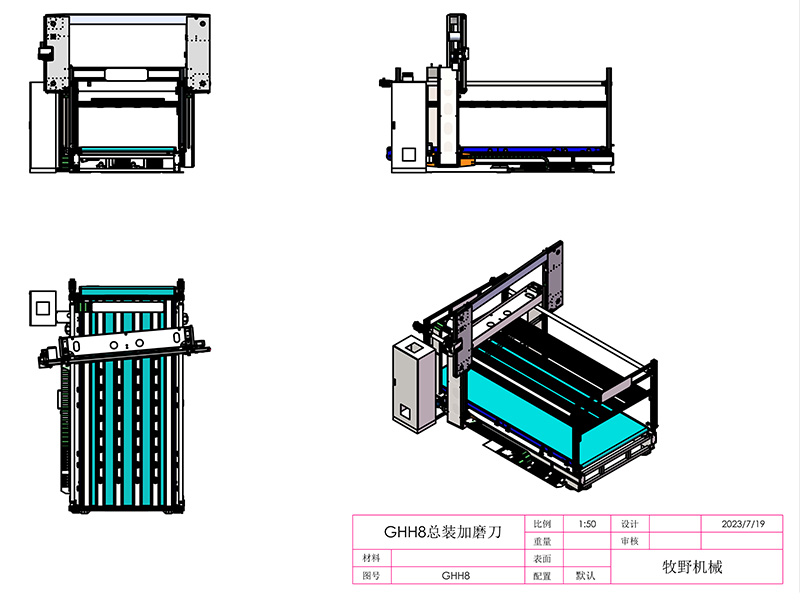

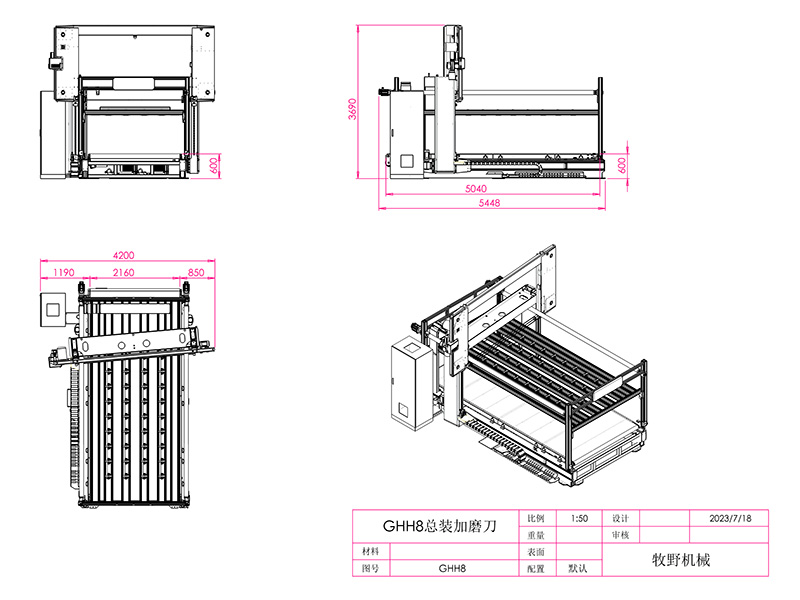

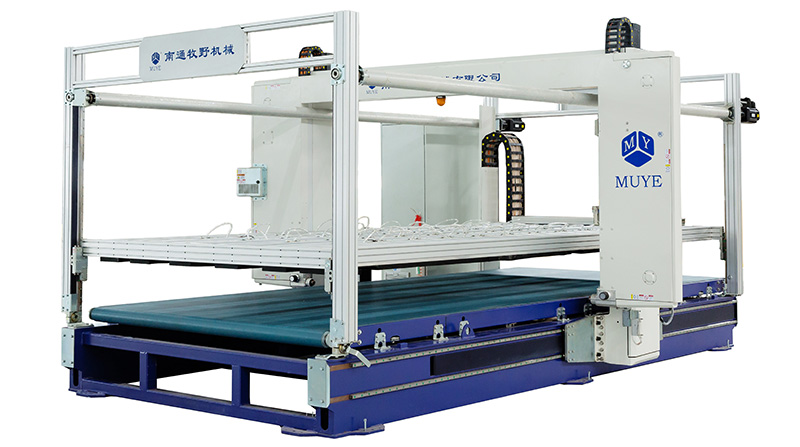

Foam Cutter (Horizontal Blade CNC Foam Slicing Machine, Model GHH8)
GHH8 horizontal blade CNC foam slicing machine is capable of fast and efficient slicing, producing neat products that can be directly used in the next step without the need for manual stacking and organizing. With high cutting efficiency, it can reach a maximum speed of 100 m/min, significantly reducing labor costs in production.
Applications
This horizontal blade CNC foam slicing machine is ideal for dust-free cutting of any desired geometric contours in industries such as automotive, furniture, packaging, construction, and daily necessities industries, etc.
Cuttable Materials
Polyurethane foam, HR+CMHR, flexible PU foam, self-adhesive foam, Basotect® foam, composite foam, molded foam, polyethylene foam.
| Standard | Option | |
| Foam block length | 3000mm | 4500mm/5000mm |
| Foam block height | 1250mm | 1500mm |
| Foam block width | 2200mm | 2300mm |
| Worktable | Worktable with belt conveyor | |
| AC power | 380V 3 phase 4 wire | |
| Total power | 25KW | |
| Max. feeding speed | 40m/min | |
| Cutting accuracy | ±0.5mm | |
| Cutting tool | Air pressure: 6 bar Continuous blade Blade size: 10850mm×13mm×0.65mm (double-edge blade) Line speed: 15m/s | |
| Standard configuration | Remote diagnosis and maintenance Automatic programming software Absolute value control Automatic angle adjustment Automatic loading monitoring Automatic press device Vacuum suction system (for foam holding) | |
| Optional configuration | Automatic sharpening system Loading conveyor L3300mm Unloading conveyor L3300mm | |
| Max. cutting speed | 100m/min | |
