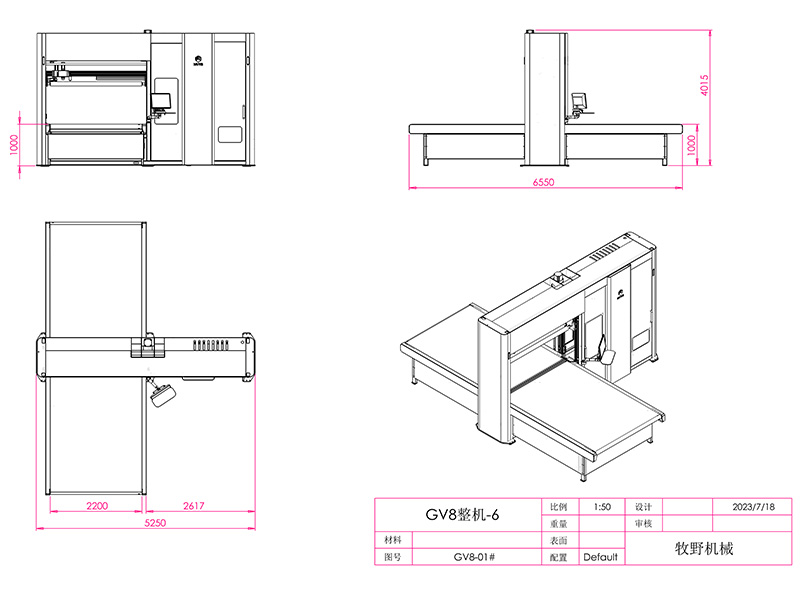

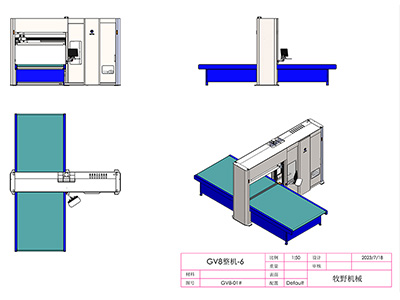

Foam Cutter (Vertical Continuous Blade CNC Contour Cutting Machine, Model GV8)
GV8 Vertical continuous blade CNC contour cutting machine is an improved and upgraded version with a more rational and aesthetically pleasing exterior design. The most significant improvement is the cutting speed, reaching a maximum speed of 80 m/min, which is a 50% increase compared to its predecessor. Furthermore, the machine's height has been reduced by 10%.
Applications
This vertical blade CNC contour cutter is ideal for dust-free cutting of any desired geometric contours in industries such as automotive, furniture, packaging, construction, and daily necessities industries, etc.

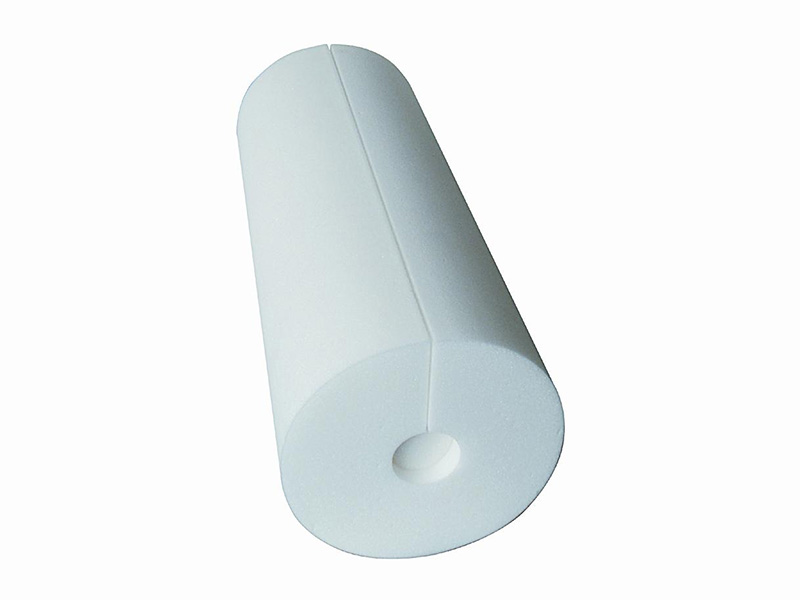

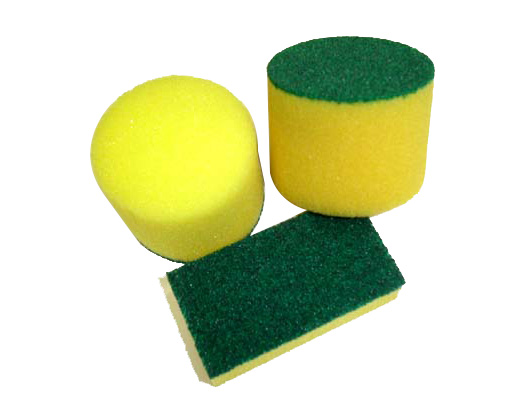

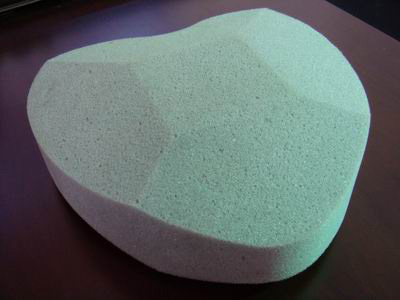

Cuttable Materials
Elastic PUR foam, PUR composite foam, PE, EVA, EPP, polyester and non-woven fabrics, mesh foam, melamine foam, rubber composite foam, adhesive and thin materials, mineral wool, fabrics, and textiles.
| Standard | Option | |
| Foam block length | 3000mm | 4500mm/5000mm |
| Foam block height | 1250mm | 1500mm |
| Foam block width | 2200mm | 2300mm |
| Worktable | Worktable with belt conveyor | |
| AC power | 380V 3 phase 4 wire | |
| Total power | 25KW | |
| Max. feeding speed | 40m/min | |
| Cutting accuracy | ±0.5mm | |
| Cutting tool | Air pressure: 6 bar Continuous blade Servo driven blade tensioning Servo driven blade sharpening Blade size: 10350mm×3.5mm×0.6mm Line speed: 10-15m/s | |
| Standard configuration | Remote diagnosis and maintenance Automatic programming software Automatic angle adjustment Absolute value control Automatic loading monitoring | |
| Optional configuration | Automatic crossbeam with knife holder Automatic press roller Automatic sharpening device Loading conveyor (with lifting) L3300mm Unloading conveyor (with lifting) L3300mm Front & rear baffle panel Side clamping device | |
| Max. cutting speed | 80m/min (depending on material being cut) | |
