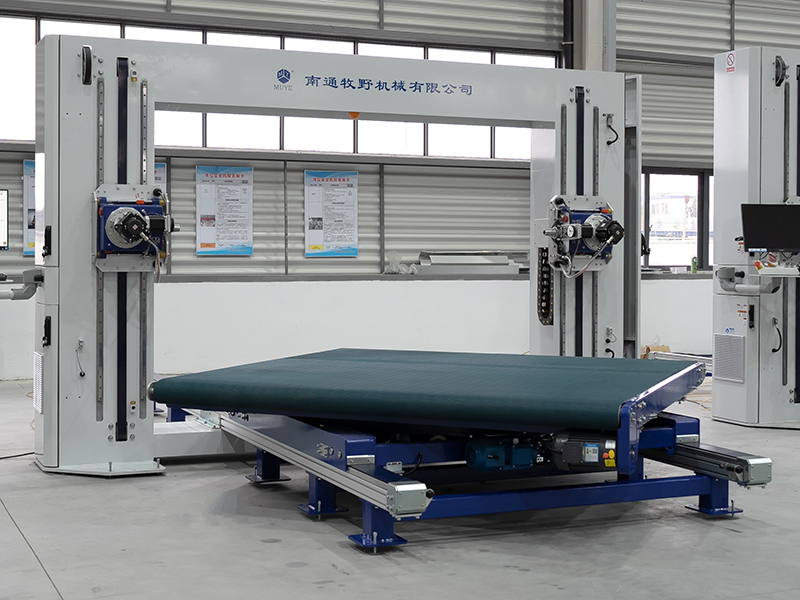

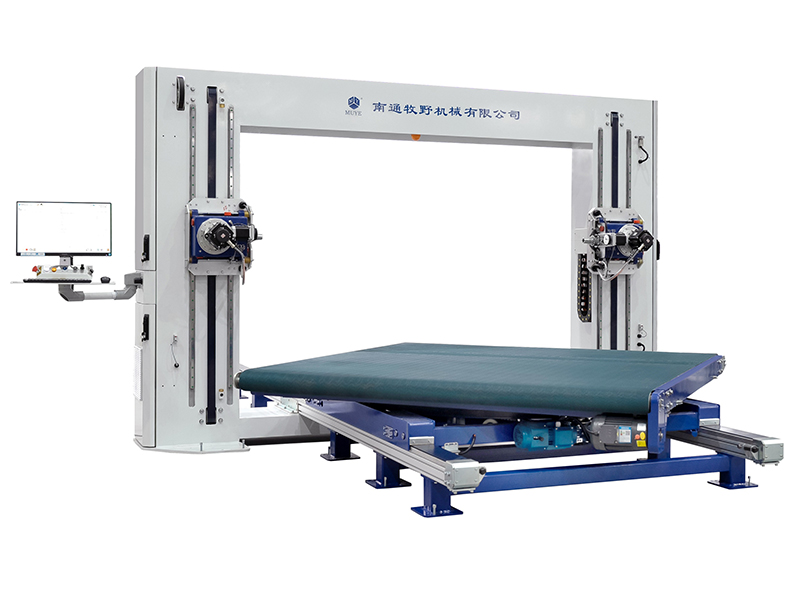

Foam Cutter (Horizontal Blade CNC Contour Cutting Machine, Model H7S)
H7S foam cutter is a high-precision horizontal contour cutting machine with high automation capabilities, capable of meeting the basic cutting requirements. Its automatic worktable can rotate 90 degrees.
Applications
This horizontal blade CNC contour cutter is ideal for dust-free cutting of any desired geometric contours in industries such as automotive, furniture, packaging, construction, and daily necessities industries, etc.
Cuttable Materials
Polyurethane, HR+CMHR, flexible PU foam, self-adhesive foam, Basotect® foam, rebond foam, polyethylene foam.

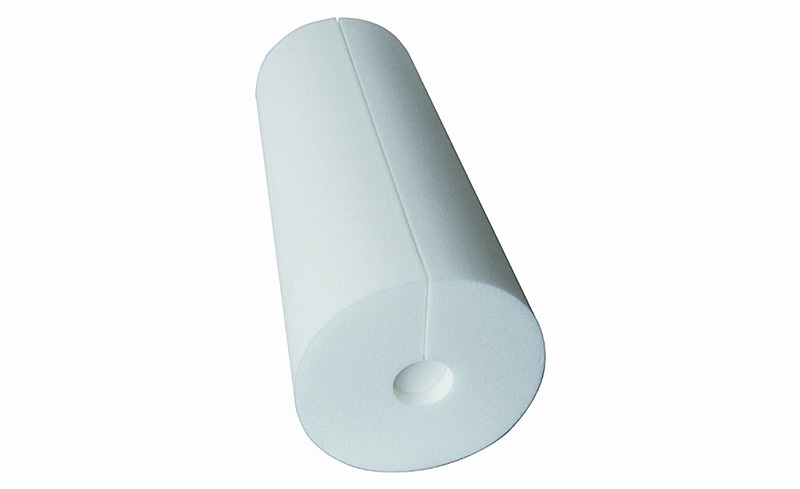

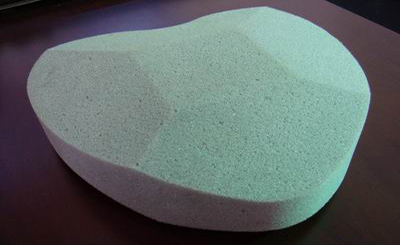

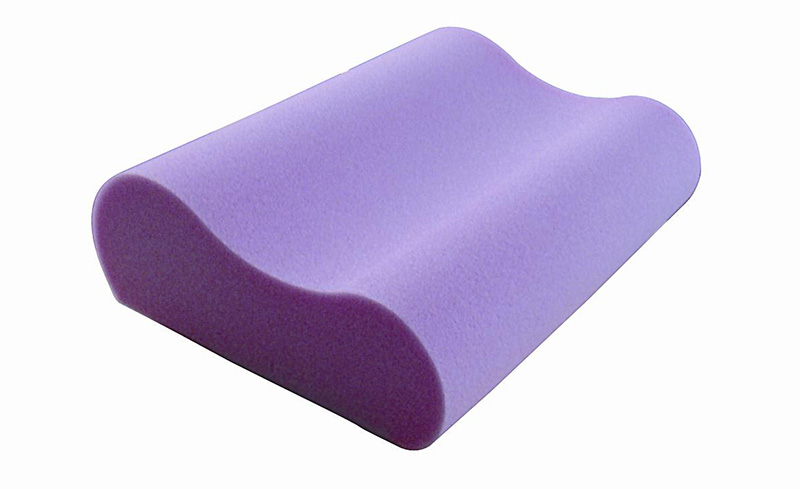

Cuttable Shapes
This horizontal blade CNC contour cutter is suitable for cutting block-shaped products. The unique rotating worktable allows the cutting of pyramid shapes, wave lines, curved regular and irregular shapes, as well as two-dimensional and simple three-dimensional geometric profiles.
| Standard | Option | |
| Max Length of foam block | 2200mm | 2300mm |
| Max Height of foam block | 1250mm | 1500mm |
| Max Width of foam block | 2200mm | 2300mm |
| Worktable | Automatic turntable (90°) with conveyor | |
| AC Power | 380V 3 phase 4 wire | |
| Total Power | 13KW | |
| Cutting precision | ±0.5mm | |
| Cutting tool | Air pressure: 6 bar Blade stroke: 48mm 50Hz Blade size: 2420mm×3.0mm×0.6mm Oscillating speed: 3000 times/min | |
| Standard configuration | Modem (remote diagnosis and maintenance) Automatic turntable Automatic programming software Automatic angle adjustment Absolute value control Hanging control panel | |
| Max. cutting speed | Different cutting materials will be cut at different speed. And the max. speed is 15 meters/minute. | |
