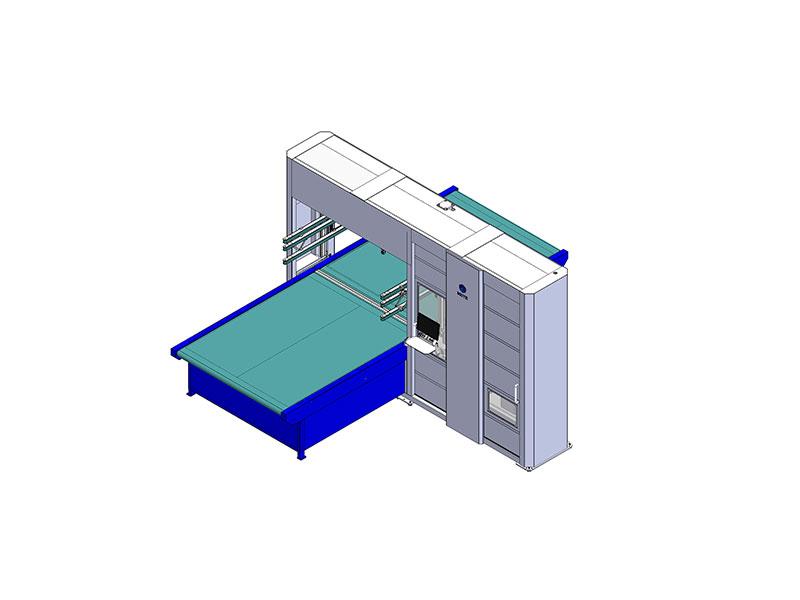

Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)

  • Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)
  • Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)
Inquiry

Uses

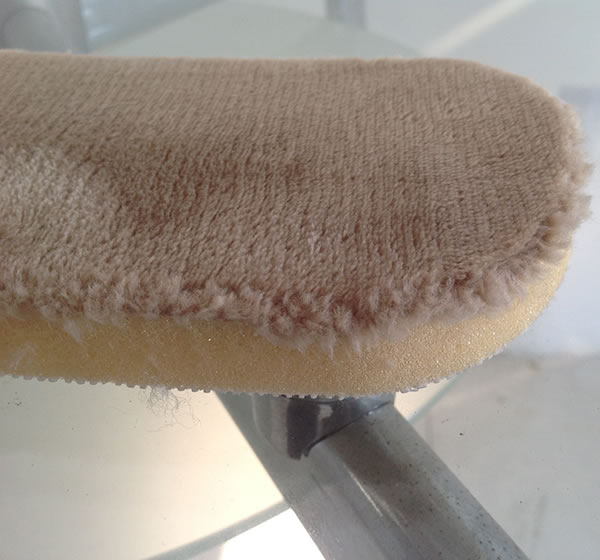

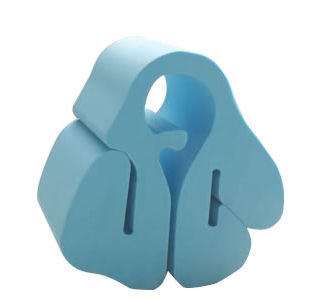

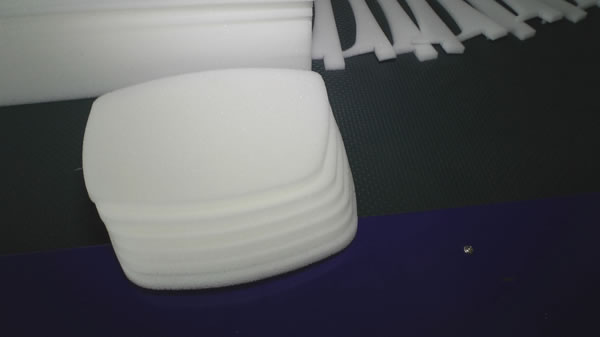

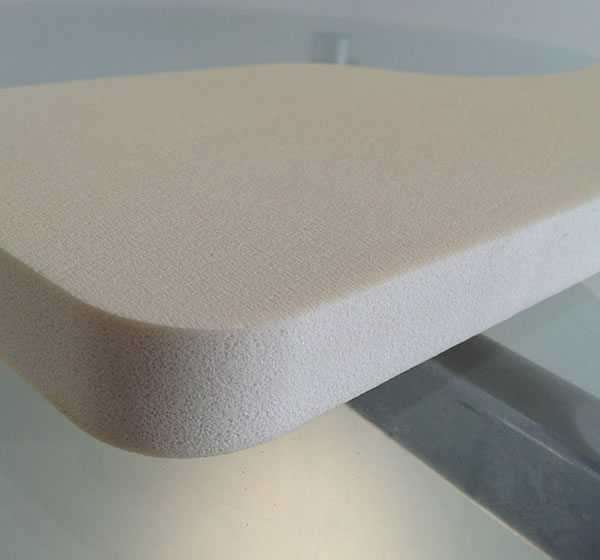

The contour cutting machine can cleanly cut any wanted geometric profile, which can then be used in the automotive industry, furniture industry, packaging industry, building industry, and daily usage industries.

  • Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)
  • Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)
  • Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)
  • Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)
  • Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)
  • Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)

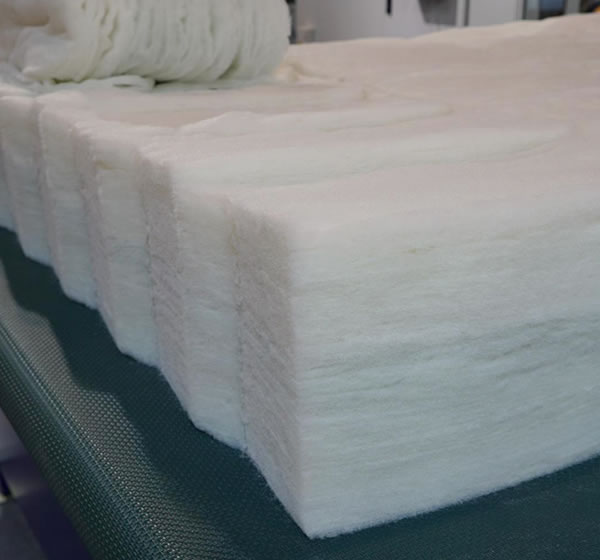

Cutting Materials

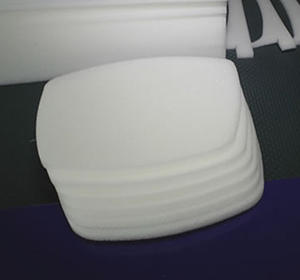

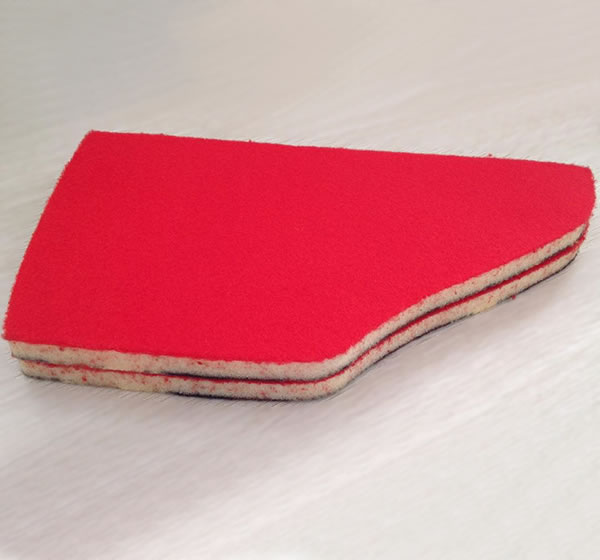

Elastic PUR foam, PUR rebond foam, PE, EVA, EPP, polyester, reticulated foam, melamine foam, rubber rebond foam, adhesive and thinning material, mineral wool, fibrous non-woven fabrics, cloths and fabrics.

Technical Parameters of the Vertical Foam Cutter

Standard Option
Length of the foam block 3300mm 4500mm
Height of the foam block 800mm 1200mm
Width of the foam block 2200mm

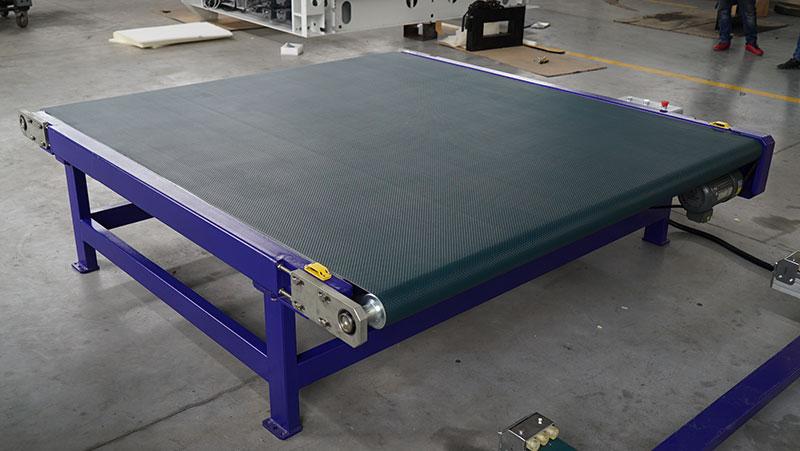

Worktable Conveyor-type worktable
AC power 380V 3 phase 4 wire
Total power 5KW
Cutting precision ±0.5mm
Standard -controlling software
-automatic electric grinder and drain device
-guide which drive the knife is above the electric drive

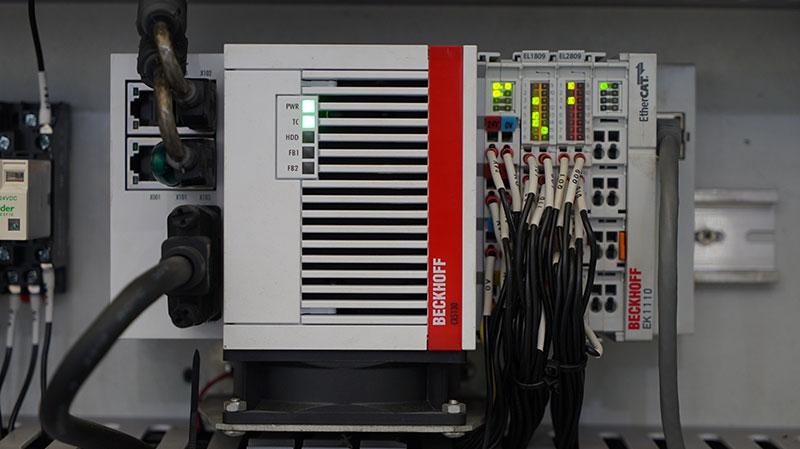

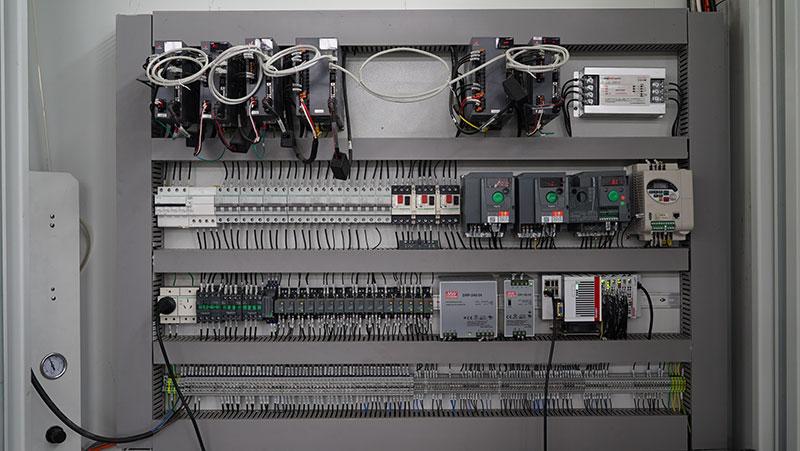

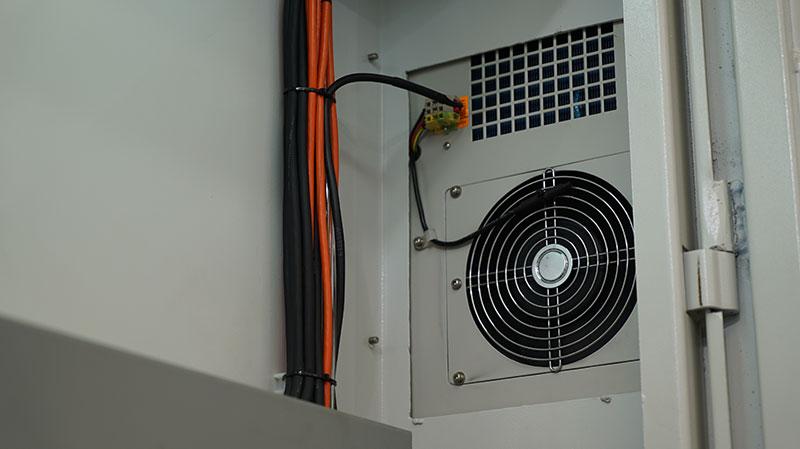

-thermostat of the control cabinet
-adjustable knife speed is 10-15m/second
-modem
-automatic angle adjustment
-absolute value control system
-automatic programming software
-automatic foam edge finding

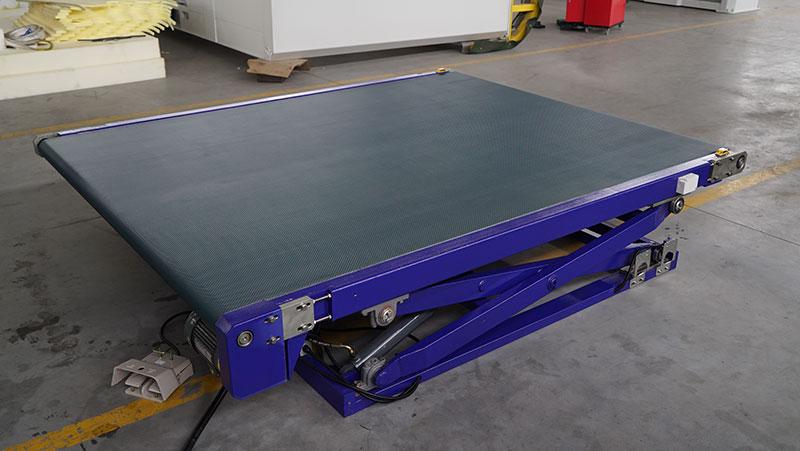

Operating option Lifting loading belt2800mm,4000mm
Max cutting speed Depending on different materials, the max cutting speed is usually 60 m/minute.

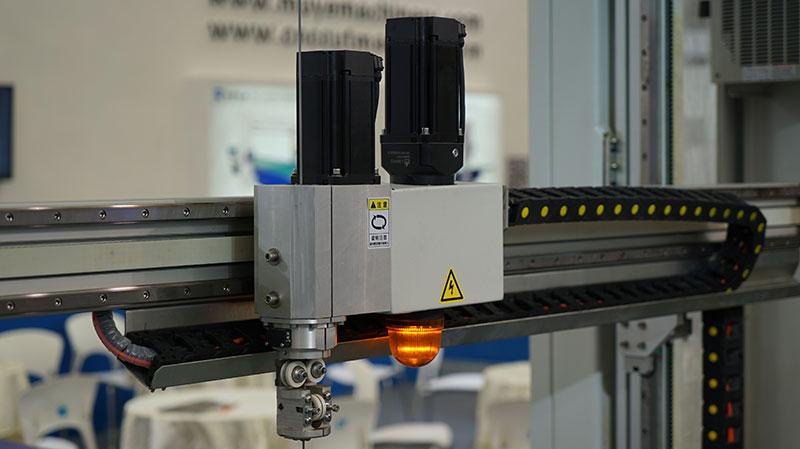

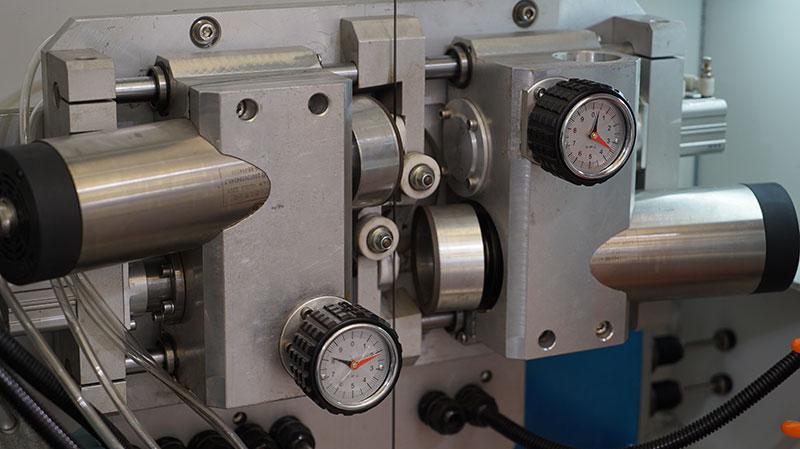

Details of Vertical CNC Contour Cutting Machine, Model GV6
  • Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)
  • Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)
  • Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)
  • Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)
  • Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)
  • Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)
  • Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)
  • Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)

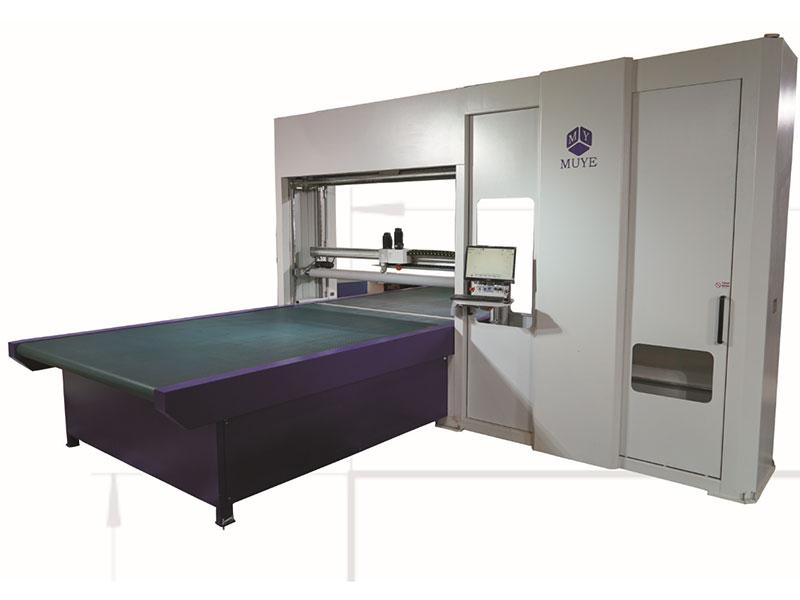

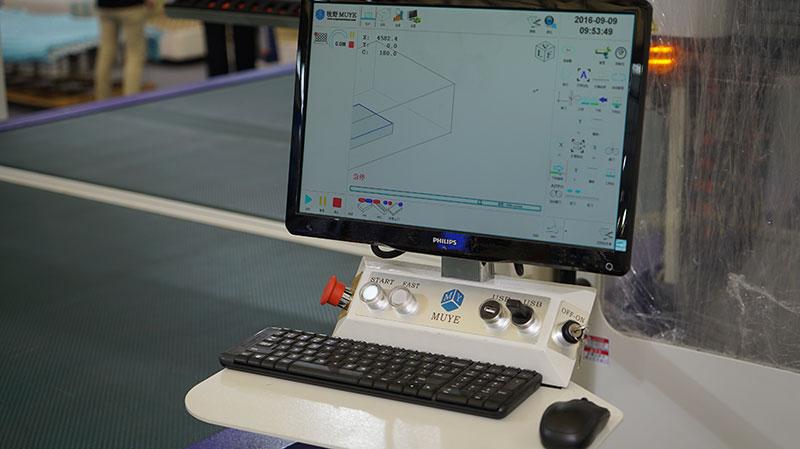

Here is our GV6 foam cutter. The vertical CNC contour cutting machine uses a computer control system and a high speed, continuous knife. This knife cuts max speed is 60m/min, and cuts cleanly, emitting no dust. This CNC foam cutting machine cuts foam automatically according to a preset designed path.

Our contour cutting machine’s operating system is reliable, and is capable of processing foam blocks of any size and most materials, such as memory foam and cleaning foam. It is functional and easy to use, while still performing quietly and efficiently, with a great looking final product. The efficient contour cutting machine is useful for a variety of foam production needs, and has been a first choice for contour cutting in the foam industry.

The CNC foam cutter has been upgraded from the G1, and its major improvements include a faster cutting speed while maintaining a high precision, enhancing production efficiency. The machine design itself is different, and is more compact and elegant than the G1.

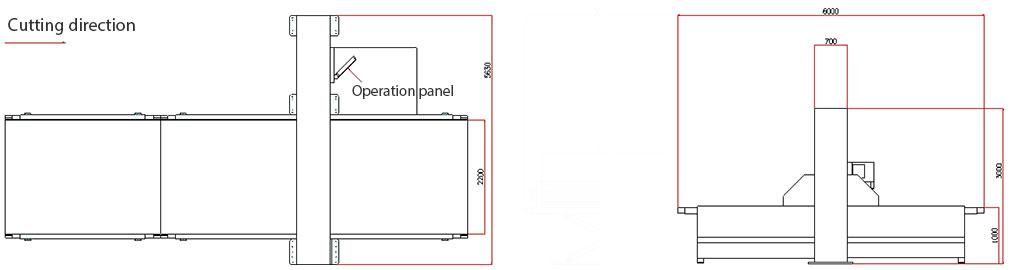

Cutting direction
Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)

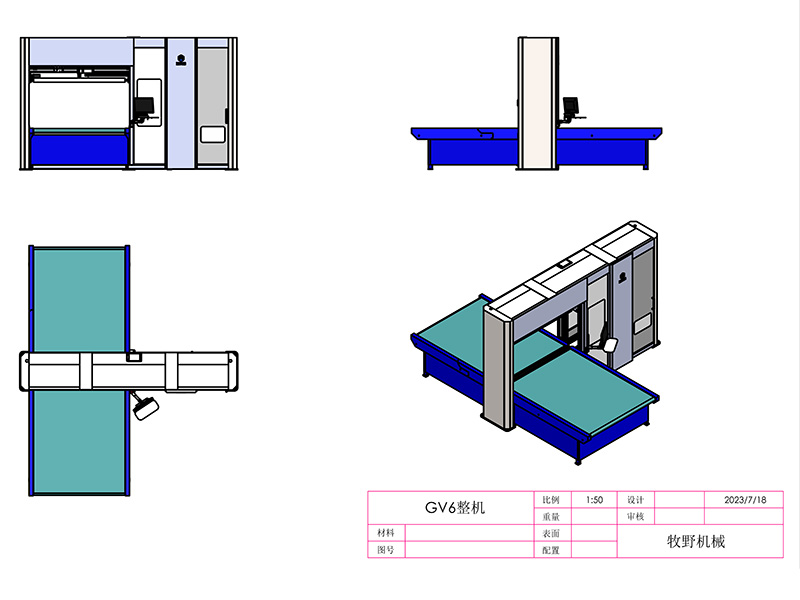

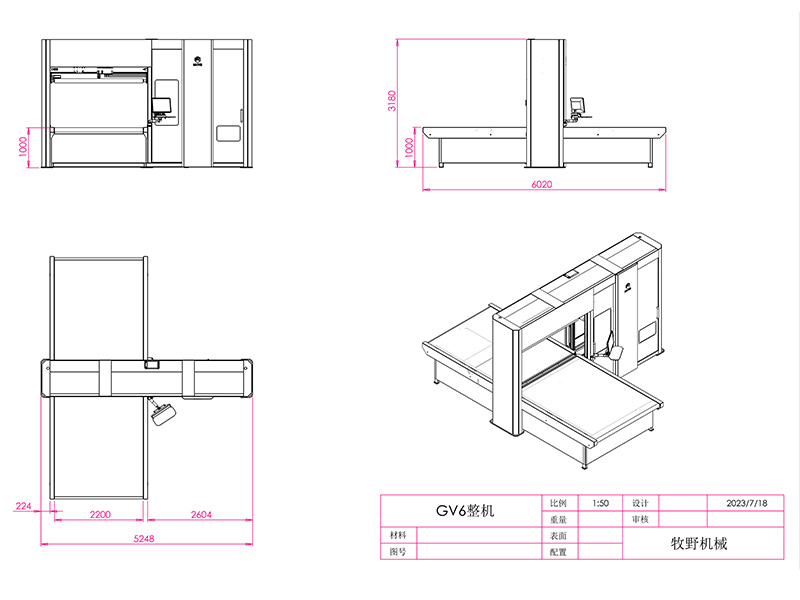

Installation instruction
  • Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)
  • Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)
  • Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)
  • Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)Foam Cutter(Vertical CNC Contour Cutting Machine, Model GV6)
